Device class streams

A device class stream gives a product value a stable identity. Publishers use the stream ID; device-page widgets use the same class stream as their source.

UI Components defines the stable stream IDs that device software publishes and customer-facing widgets consume.

Use streams for product data such as temperature, volume, operating mode, or a threshold state. Do not use them as a replacement for connectivity status, organisation logs, or incident state.

Data path

All samples cross the device boundary through the Dataplicity agent:

flowchart LR
  Source["Sensor or application"]
  Publisher["On-device publisher"]
  Broker["Agent broker on loopback"]
  Agent["Dataplicity agent"]
  Widget["Device-page widget"]
  Source --> Publisher
  Publisher --> Broker
  Broker --> Agent
  Agent --> Widget

The publisher does not need a Dataplicity API key. It posts to the local broker, and the agent authenticates delivery.

This workflow requires a field-agent release with the local stream broker.

Define a stream

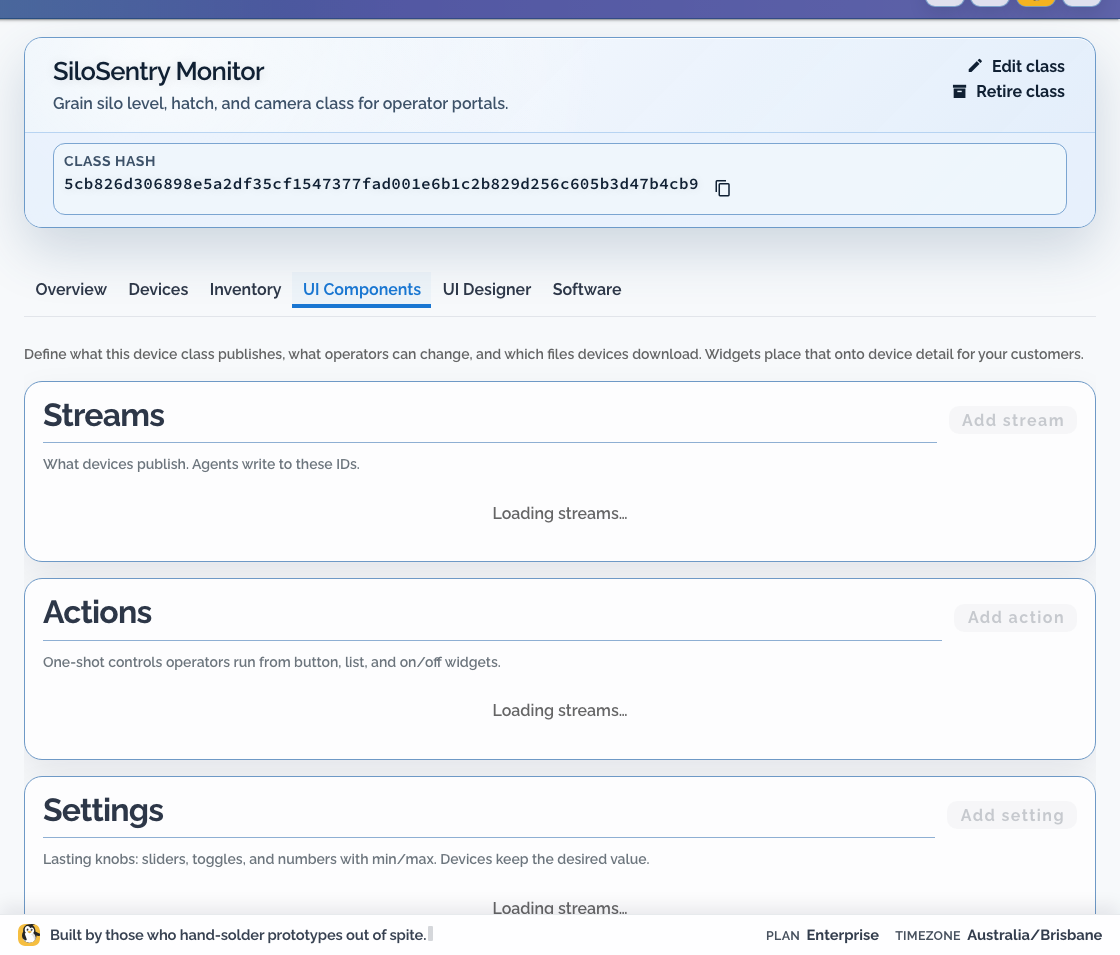

On the Device Class UI Components tab, choose Add stream. Record:

Decision	UI field	Example
Binding identifier	ID	fridge_temp_c
Display name	Name	Fridge temperature
Value type	Data type	Number
Unit	Unit	°C
Expected cadence	Product note	Every 30 seconds
History	History	Live only, unless a chart needs it
Valid range	Product-specific	Product-specific
Missing or stale meaning	Product note	Sensor unavailable or publisher stopped

Keep stream IDs stable after devices ship. Changing one requires a coordinated publisher and page-layout update.

Prefer product concepts over implementation details. tank_litres is a better contract than adc_channel_2.

Publish locally

Supported field-agent releases expose the class stream endpoint on loopback:

POST http://127.0.0.1:18765/v1/streams/{binding_id}

Use the example publisher client for error handling. A numeric sample is JSON with Content-Type: application/json:

{
  "sequence": 1,
  "timestamp_ms": 1710000000000,
  "storageProfile": "volatile",
  "body": { "value": 4.2 },
  "metadata": { "source": "example-sim" }
}

The public Gateway API is not the device stream-ingest path.

The publisher should:

• validate a sample before posting it
• use the exact class stream ID
• keep credentials out of the process
• handle temporary broker unavailability without a tight retry loop
• resume publishing when the broker returns

The agent handles cloud authentication, buffering, and retry.

Bind a page widget

In UI Designer:

1. add a widget suitable for the value
2. set Stream to show to the class stream
3. verify the unit and Name
4. preview a current value
5. preview missing and stale data
6. confirm the same page on a portal-assigned staging device

Do not make a customer infer alarm state from an unlabeled number. Where a dedicated visualisation is not available, publish explicit helper streams, such as threshold values or boolean state, and label them clearly.

Version changes safely

Treat stream bindings like an API between the device and its page:

1. add the new binding
2. update the publisher to send both old and new values if compatibility is required
3. update the class page
4. verify staging and portal views
5. retire the old binding only after its consumers are gone

Troubleshooting

• No data: compare the publisher stream ID with UI Components.
• Data in OEM view but not portal: confirm the class UI is enabled and the device is assigned to the customer's network.
• Wrong unit: fix the class contract and normaliser together; do not only relabel the widget.
• Intermittent values: compare expected cadence with stale handling, then inspect publisher and broker availability.
• Publisher requests a cloud key: remove that path and publish to the local broker.
