Build a fuel management application

This walkthrough documents the fuel_management reference application. It coordinates a fuel pump and site gateway while treating timeout, partial dispense, and lost connectivity as expected operating conditions.

You finish with:

• Fuel Pump and Site Gateway Device Classes
• pump and gateway application bindings
• customer-managed credential records
• a site_credentials offline dataset
• an authorise_dispense command
• a durable request_fuel process
• walk-away release, partial settlement, and reconciliation paths

This proof does not certify a dispenser, meter, payment terminal, hazardous-area installation, tax calculation, or financial ledger. Physical and regulatory safety remains in the pump controller and the qualified site system.

Before you start

Use a simulator or non-dispensing test rig. You need:

• Product Applications beta access on Standard+
• a test customer instance and portal
• a Fuel Pump Device Class and representative test pump
• a Site Gateway Device Class and representative gateway
• a safe device bridge for pump authorisation and event reporting
• a test resource account with no real monetary value

Never test cloud workflow changes against an enabled production dispenser.

Part 1: Define the two hardware roles

Create or select:

Device Class	Application role	Responsibility
Fuel Pump	pump	Enforce local interlocks, apply a bounded authorisation, meter dispense, and emit started/completed events
Site Gateway	gateway	Hold site credentials and offline authority material for the approved local runtime

The pump must remain safe when cloud state is stale, duplicated, delayed, or unavailable. A cloud command requests authorisation; it does not bypass local emergency stop, meter, valve, overfill, or hazardous-area controls.

Model the pump and gateway as separate hardware products, then bind each class to its role in one application.

Part 2: Create and bind the application

1. Open Developer > Product Applications.
2. Create Fuel Management with key fuel_management.
3. In Build > Hardware, bind Fuel Pump as pump.
4. Bind Site Gateway as gateway.
5. Confirm only staging devices from each class are eligible for the matching role.

Role aliases are stable application identifiers. Do not use device names such as Pump-4 as definition keys.

Part 3: Define customer credentials

In Build > Models, add a configuration model:

Field	Value
Model key	credential
Label	Credential
Customer create/update	Enabled for authorised administrators
Customer delete	Disabled in the normative proof

Add:

Field key	Type	Meaning
card_uid	String	Identifier consumed by the approved site runtime
status	String	Active, suspended, revoked, or another explicit state

Production designs normally need a separate vehicle or account reference, policy, limits, validity window, and audit identity. Do not put secrets, PINs, payment data, or unrestricted personal information into an offline projection.

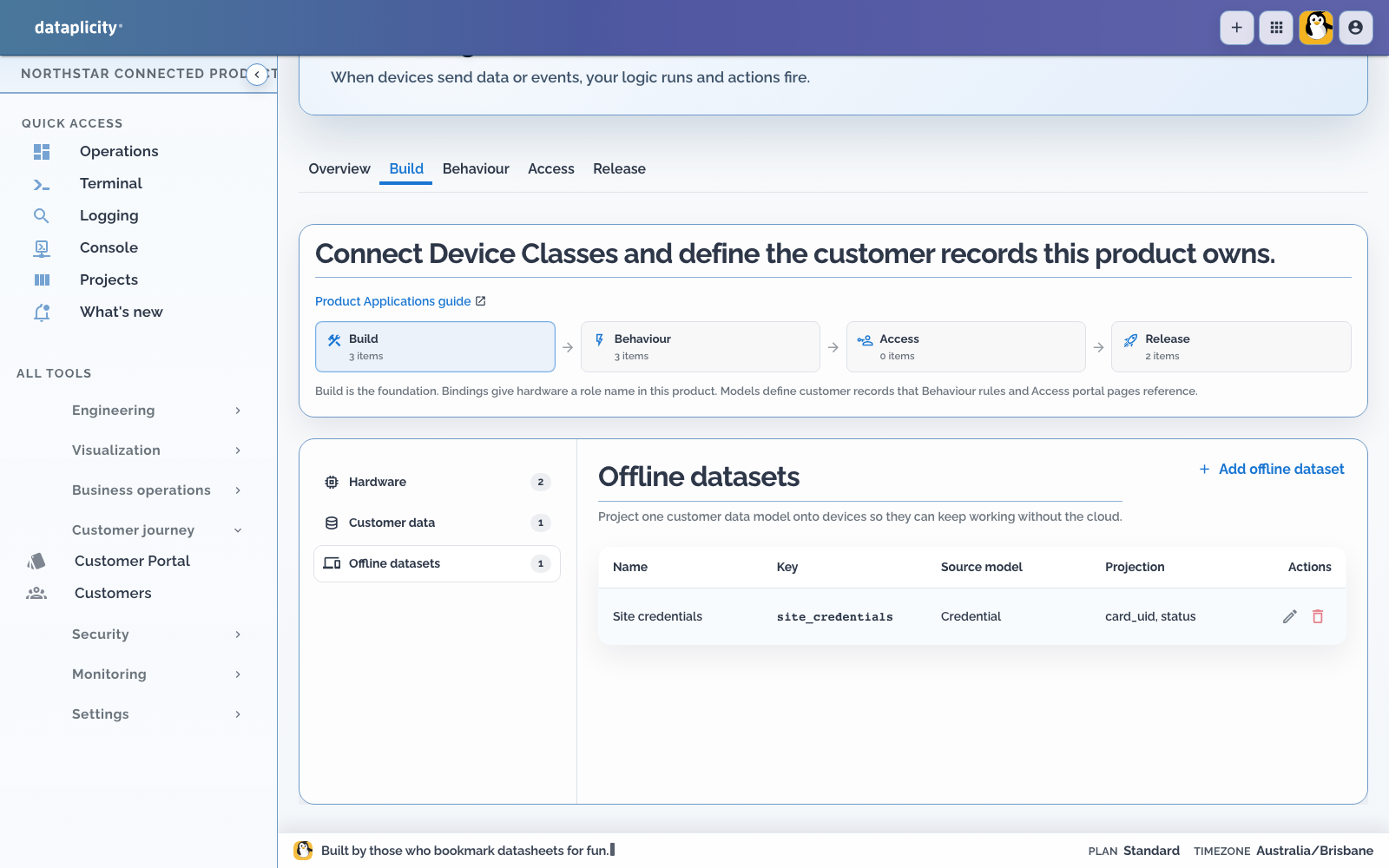

Part 4: Project the site credential dataset

In the offline dataset section, add:

Setting	Reference value
Key	site_credentials
Label	Site credentials
Projection	credential.card_uid, credential.status
Target selection	Device
Format	JSON
Delta limit	1,000 changes or 5 MiB
Base rewrite ratio	50 percent changed

Generate a base after publishing, then use deltas for bounded changes. The device reports which generation it applied; desired generation is not proof of active local state.

Prelude Agent Product Runtime downloads the desired generation, verifies the payload, stages it, atomically activates it, keeps last-known-good, and reports the applied generation. Confirm the Customer Portal sync chip shows current after the agent has applied the payload; desired generation alone is not enough.

The passing reference draft projects only the bounded credential fields required by the site runtime.

Part 5: Define the pump command

Add Authorise dispense with key authorise_dispense, binding pump, and a 30-second timeout. The normative proof supplies a maximum value and an authorisation identity.

The pump-side handler must:

• validate the correlation and authorisation IDs
• reject values outside local policy
• apply the maximum only once
• report a terminal command result
• emit dispense.started and dispense.completed with the same domain identity
• preserve completion for later upload if connectivity is lost

Do not infer dispensed value from command success. Settlement uses the measured completion event.

Part 6: Build the request process

Create Request Fuel with key request_fuel.

Happy path:

reserve requested credit
  -> authorise pump and wait
  -> wait up to 30 seconds for dispense.started
  -> wait for dispense.completed
  -> partially commit the measured amount
  -> release the unused reservation
  -> complete

Walk-away path:

pump rejects, command expires, or no dispense.started event
  -> release the full reservation
  -> fail with walk_away_timeout

Lost-connectivity path:

dispense started but completion does not arrive
  -> enter reconciliation
  -> wait for the durable completion event
  -> settle measured amount
  -> release the remainder

The normative proof uses a 10-second completion timeout to exercise reconciliation quickly. Set production timing from real dispenser behavior and network testing, not from this test value.

Part 7: Define customer access

Expose only deliberate customer operations:

• manage credentials for authorised customer administrators
• request fuel through a reviewed operation or external API
• view transaction state and customer-safe audit activity

Do not expose raw pump commands, offline authority controls, reconciliation internals, or OEM diagnostics to ordinary portal users.

If an ERP, card platform, or payment system is authoritative, bind it as an HTTPS integration with its own idempotency and reconciliation design.

Part 8: Publish and prove the online paths

1. Validate and publish version 1.
2. Attach it to the staging portal and provision Fleet Fuel.
3. Create active and suspended test credentials.
4. Preview and generate site_credentials.
5. Report the generation applied by the test gateway.
6. Create the bounded test credit account.
7. Start request_fuel with a unique authorisation and correlation identity.
8. Report the pump command succeeded.
9. emit dispense.started
10. emit dispense.completed with a value below the reservation
11. confirm only the measured value is committed
12. confirm the remainder is released

Repeat without dispense.started and confirm the full reservation is released with walk_away_timeout.

Part 9: Prove offline reconciliation

Issue a bounded authority grant tied to the current credential dataset generation. Replace it and confirm the old grant is no longer active.

While the test gateway is disconnected:

1. consume only within the local grant and policy
2. create a globally unique durable event ID
3. preserve the event across restart
4. upload after reconnection
5. retry the same event deliberately

Confirm the server applies the event once, partially commits the correct amount, updates the grant, and acknowledges the durable event before local deletion. Test hard expiry and storage exhaustion as failure conditions.

Verify pump and gateway placement inside the intended customer boundary before testing customer-visible fuel records and operations.

Production handover gate

• [ ] Pump safety does not depend on cloud availability.
• [ ] Authorisations and completion events have durable unique identities.
• [ ] Walk-away releases the full reservation.
• [ ] Partial dispense commits only the measured amount.
• [ ] Lost completion enters reconciliation rather than guessing.
• [ ] Offline grants are bounded, generation-linked, replaceable, and hard-expiring.
• [ ] Duplicate offline events reconcile once.
• [ ] The gateway preserves unacknowledged events across restart.
• [ ] Suspended credentials disappear from the next applied generation.
• [ ] Customer roles cannot invoke raw pump or authority operations.
• [ ] Another customer cannot see credentials, transactions, devices, or activity.
• [ ] Regulatory, metrology, payment, and hazardous-area responsibilities are documented outside this proof.
